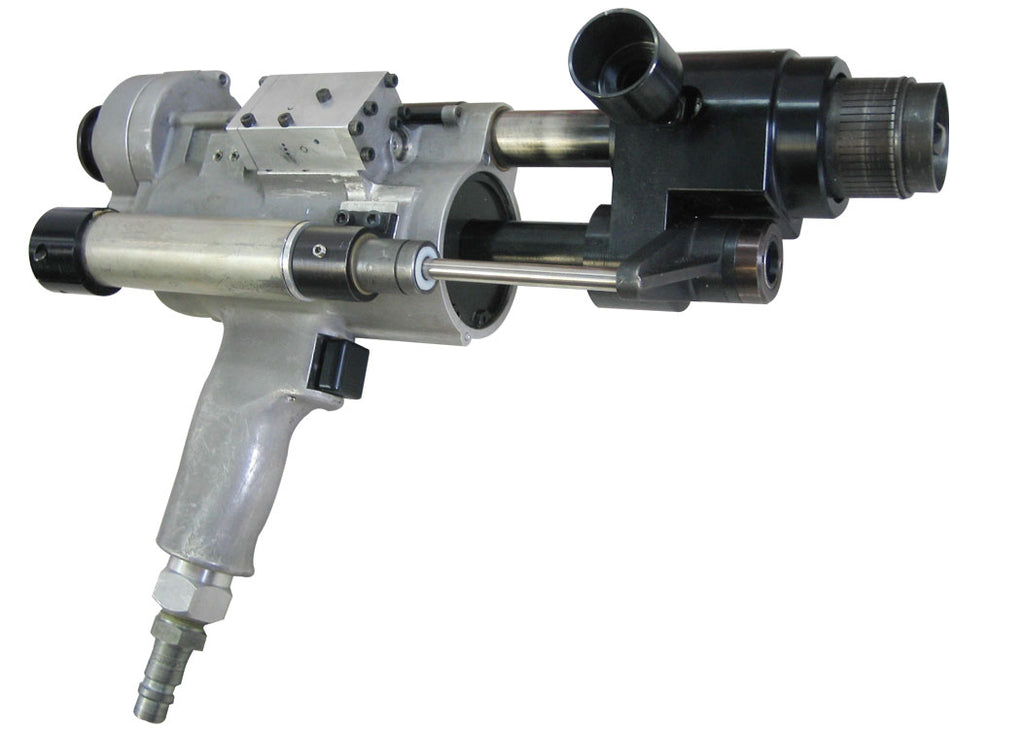

Spacematic Drillmotor M1000II

HS ToolingSKU: SB-0470

Price:
Request pricing

Lead Time:
Special Order

Documentation

Description

Standard Features

  • Ergonomic design.
  • Consistent clamp force–min to max collet spacing.
  • Choice of template foot, concentric collet, Keller foot or taper lock.
  • 7 spindle speed selection.
  • Fully adjustable feed rate.
  • Positive mechanical depth stop.
  • Spindle rotation during retract.
  • Locking trigger for unattended operation.
  • Precision spindle bearings.

Optional Features

  • Air pressure intensifier for increased thrust and clamp force.
  • Drill point and through spindle coolant systems.
  • Spindles compatible to various cutter designs.
  • Variable clamp force control unit.
Feed Stroke 1.18 (30mm)
Drill to Collet Spacing .75 Min 3.00 Max
Spindle Length Adjustment .25 (6.4 mm)
Feed Control Selfcontained hydraulic control module. Fully adjustable .001 to .012 I.P.R. at 90 PSI (.025 mm .3 mm per rev)
Spindle Speeds (RPM) 300, 450, 700, 1500, 1800, 2500, 4500, 6000, 9000, 12500
Drill+C'Sink Dia. (Max.) .3125/.6250 (7.9/15.9mm)
Stall Torque (4500 RPM) 79 in Lbs. (91 kg cm)
Drill Thrust 210 Lbs. (95 kg)
Clamp Force 540 Lbs. (95 kg)
Motor Power 1.5 HP (1.1 kw)
Air Consumption (.375 inside dia. (12.7mm) hose) 45 CFM @ 90 psi
C'Sink Depth Accurancy +/.005in (+/0.013 mm)
Collet Stroke .625 (17.1) mm
Weight 8.5 lbs. (3.8 kg)

Feed control safety cap.
